Metal sintered filter medium Specialist

Sany filter, filter what you need.

Sintered Matel Fiber Felt with Protective Mesh

Sintered Matel Fiber Felt with Protective Mesh
Sintered Matel Fiber Felt with Protective MeshSintered Matel Fiber Felt with Protective MeshSintered Matel Fiber Felt with Protective MeshSintered Matel Fiber Felt with Protective MeshSintered Matel Fiber Felt with Protective Mesh
CategoriesSintered Stainless Steel Fiber Felt
BrandXinli
ModelSintered Fiber Felt
MaterialStainless Steel Fiber
ApplicationIndustrial Filtration
Filtration Rate3-80um
FeatureHigh Dirt Holding Capacity
PatentYes
TechnologySintering
CertificateISO9001
ShapeCustomized
Free SampleAccording to Size
Product NameSintered Matel Fiber Felt with Protective Mesh
Unit PriceUS $ 55-60 / piece
FOB portQingdao,Tianjin,Shanghai
Terms of PaymentL/C, Western Union, MoneyGram, T/T
Update TimeOct 10,2024
Detail Information

Sany Sintered Fiber Felt with Potective Mesh Introduction

Sany sintered fiberfelt with protective mesh is added a layer of wire mesh of 40mesh or 48mesh (itmay be on a side or on the interlayer ) on the conventional sintered fiberfelt, or a layer of wire mesh on each side, then sintering together forms ahigh strength sintered fiber felt.


Sany Sintered Fiber Felt with One Layer Protective Mesh Structure

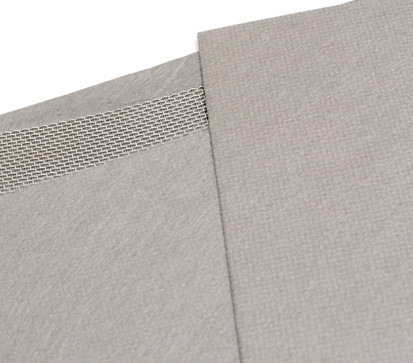

Sany Sintered Fiber Felt with One Layer Protective Mesh On A Side


Sany Sintered Fiber Felt with A Intercalary Support Mesh

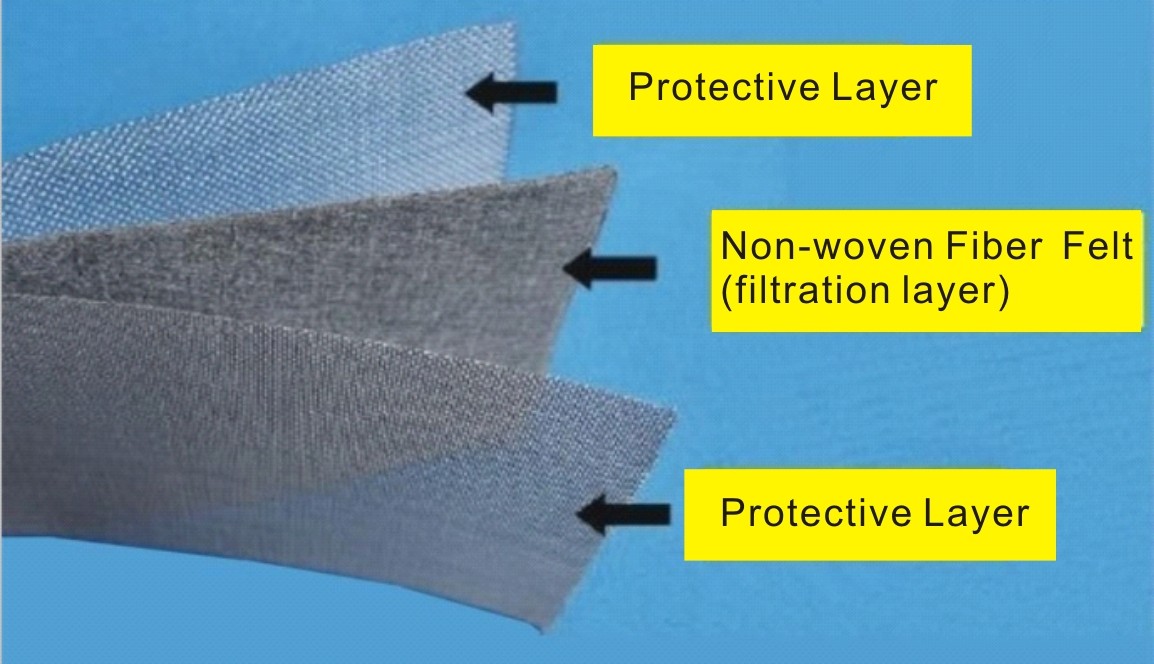

Sany Sintered Fiber Felt with Double Support Mesh



Sany Sintered Fiber Felt With Protective Mesh Technical Parameters

NameSany Sintered Fiber Felt with Protrctive Mesh
Standard Material 316L Stainless Steel Fiber
Micron Rating From 3micron to 80microns ,Optional
Standard Size20'' x 40''   40'' x 40''   40'' x 48''  .Max Size Is 48'' x 60'' ( 1''=25mm)
Thickness0.5 - 1.1mm  or Customized
ShapeRound , Square, Ring , Cartridge, Cone etc
Operating TemperatureUnder 480℃  For Long Time

Comparison with Conventional Sintered Non-woven Fiber Felt

It's more resistant to high temperature,better strength, Better wear-resistant and distributary performance

Sany Sintered Fiber Felt with Protective Mesh Application

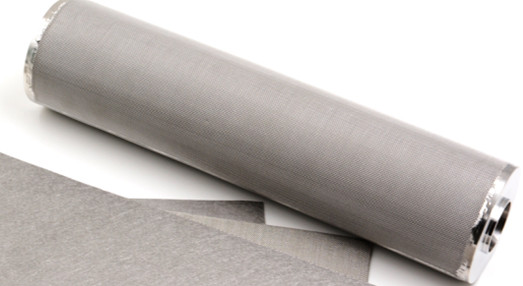

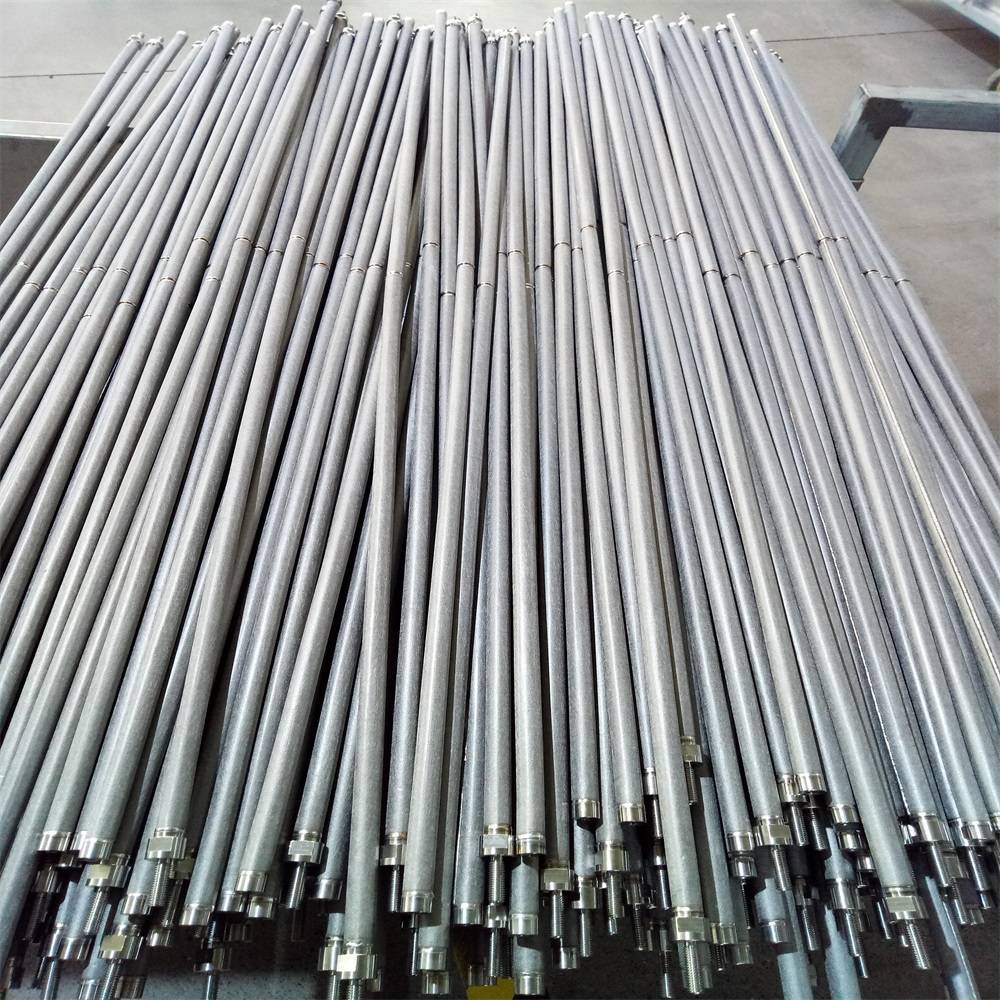

Becauseof the increased protection mesh, it can be processed into a filter cartridge



Sany Sintered Fiber Felt with Protective Mesh Application Field

Polymerfiltration, Petrochemical, High temperature gas dedusting , Oil refiningprocess filtration,Adhesive filtration, Pre-filtration of ultrafilter, Vacuumpump protection filter, Filter membrane support body, Catalyst carrier,Automobile airbag, Aircraft ship and other fuel filtration,Hydraulic systemfiltration,etc.
