Multi-layer Sintered Woven Wire Mesh

Multi-layer Sintered Woven Wire Mesh
Multi-layer Sintered Woven Wire MeshMulti-layer Sintered Woven Wire MeshMulti-layer Sintered Woven Wire MeshMulti-layer Sintered Woven Wire MeshMulti-layer Sintered Woven Wire Mesh
CategoriesStandard Five-layer Sintered Woven Wire Mesh
AlbumView larger image
BrandXinli
Modelmulti-layer sintered mesh
MaterialStainless steel woven wire mesh
ThicknessDesigned
ApplicationIndustry
TechnicueSinter,Woven
CertificateISO9001
StructureCustomized
MOQ1
FreeAccording to size
Brand nameSany
Product nameMulti-layer sintered woven wire mesh
Unit PriceUS $ 490-500 / square meter
FOB portQingdao,Tianjin or other Chinese ports
Terms of PaymentL/C, Western Union, MoneyGram, T/T, Paypal
Update Time2018-11-18
Detail Information

Sany multi-layer sintered mesh introduction

Sany multi-layer sintered woven mesh is composed of multi-layer stainless steel wire mesh(maybe 3-layer,4-layer,7-layer,8-layer,10-layer, etc.), which is special canlendering and sintering in vacuum oven, to create a new filter material with high strength and rigidity. Its interlaced mesh forms a uniform and ideal filtration structure. It is widely used in many industries such as the petrochemical,nuclear power, synthetic fiber, film, food, pharmaceutical, aerospace and environment protection industry.

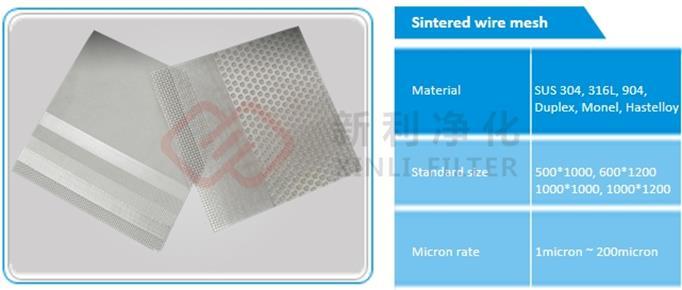

Sany multi-layer sintered mesh technical parameters

Product Name

 Sany multi-layer Sintered Woven Wire Mesh

 Material

 304 or 316L Stainless steel wire mesh.But special material can be selected as well (such as Hastelloy, Monel, 904L etc.).

 Micron Rate

 From 1um to 300um, optional.

 Standard Size

 20''×40''  40''×40''  40''×48''. Max size is 48''×60'' (1''=25mm)

 Thickness

 According to the number of mesh layers

 Shape

 Round,Square,Ring,Oval,Bowl,Tube,Cone etc.

 Operating Temperature

 -200~600

 Feature

 High strength and rigidity,Uniform and stable precision,Cleanable

Sany multi-layer sintered woven mesh main application

1.Distribution and cooling material in high temperature;

2.Material used for gas distribution and fluidization bed;

3.Material requiring high precision, stable performance in high temperature;

4.High pressure backwashed oil filter;


Sany multi-layer sintered woven mesh application projects

1.Hydraulic oil & lubricant oil filtration in machinary industry;

2.All kinds of polymer filtration in chemical fiber film industry, filtration in high temperature and for corrosive liquid,material filtering, cleaning and drying in pharmacuetical industry;

3.Gas distribution in powder industry,fluidization in steel industry;

4.Buzzer for explosion proof electric apparatus;
