Perforated Sheet Sintered With Wire Mesh Laminate

Perforated Sheet Sintered With Wire Mesh Laminate
Perforated Sheet Sintered With Wire Mesh LaminatePerforated Sheet Sintered With Wire Mesh LaminatePerforated Sheet Sintered With Wire Mesh LaminatePerforated Sheet Sintered With Wire Mesh LaminatePerforated Sheet Sintered With Wire Mesh Laminate
CategoriesStandard Five-layer Sintered Woven Wire Mesh
AlbumView larger image
BrandXinli
Modelperforated sheet with wire mesh laminate
MaterialStainless steel
FeatureHigh pressure resistance
Filtration Rating1-300micron
TechnicueSinter,Woven, Perforated
CertificateISO9001
StructureStandard or Customized
MOQ1
OEM SeversYes
Brand nameSany
Product namePerforated sheet sintered with wire mesh laminate
Unit PriceUS $ 400-500 / square meter
FOB portQingdao,Tianjin or other Chinese ports
Terms of PaymentL/C, Western Union, MoneyGram, T/T, Paypal
Update Time2018-11-18
Detail Information

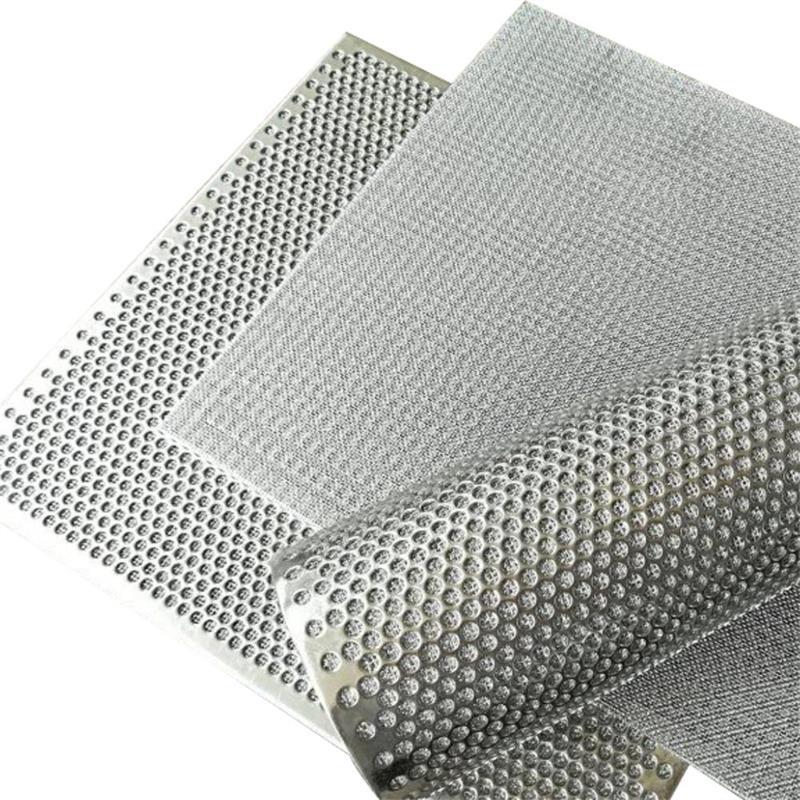

Sany perforated sheet sintered with wire mesh laminate introduction

This is a new filter material,which is sintered together with one layer perforated plate(304 or 316L) and several layers of plain or twilled woven wire mesh to form a very strong yet tractable plate.

It is suitable for a variety of applications which require fine filtration and high pressure.

The layer and mesh number is decided by the working condition and application,the thickness of perforated sheet and the the type of perforations can also be customized.

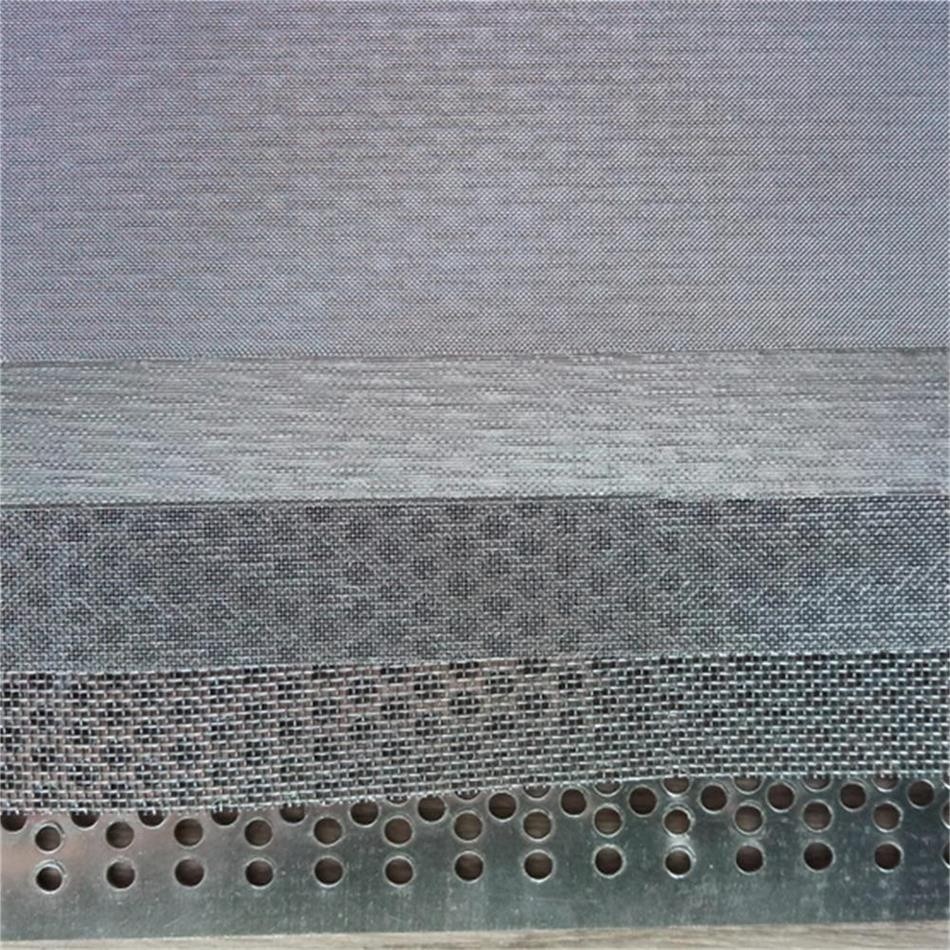

Sany perforated sheet sintered with wire mesh laminate structure







Sany perforated sheet sintered with wire mesh laminate feature

It enjoys the advantages of higher mechanical strength, better backwash efficiency and lower pressure drop loss,due to the special structure of pressure resistant framework and filtering mesh by sintering together.

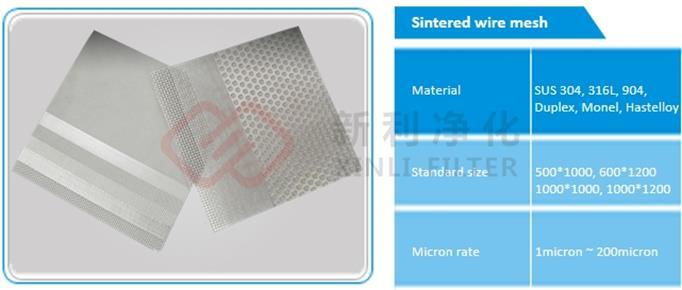

Sany perforated sheet sintered with wire mesh laminate technical parameters

 Name

 Sany Perforated Sheet Sintered with Wire Mesh

 Material

 304 or 316L Stainless steel wire mesh and perforated sheet

 Micron Rate

 From 1um to 300um, optional.

 Standard Size

 20''×40''  40''×40''  40''×48'' (1''=25mm)

 Thickness

 According to the number of mesh layers and the thickness of the perforated sheet

 Shape

 Disc, Cartridge,Cone etc.

 Operating Temperature

 650


Sany perforated sheet sintered with wire mesh laminate main application

Water treatment, beverage, food, metallurgy, chemical and pharmaceutical industries.
