Polymer Leaf Disc Filter

Polymer Leaf Disc Filter
Polymer Leaf Disc FilterPolymer Leaf Disc FilterPolymer Leaf Disc FilterPolymer Leaf Disc FilterPolymer Leaf Disc Filter
CategoriesPolymer Leaf Disc Filter
BrandXinli
ModelLeaf Disc Filter
MaterialSintered stainless steel mesh
CertificationISO9001
SizeStandard
Micron5-100um
ApplicationPolymer filtration
ShapeDisc
PressureAbout 30MPa
Brand nameSany
Customized serviceAccepted
Product namePolymer Leaf Disc Filter
Unit PriceUS $ 360-380 / piece
FOB portQingdao, Tianjin, Shanghai
Terms of PaymentL/C, Western Union, T/T
Update TimeOct 10,2024
Detail Information

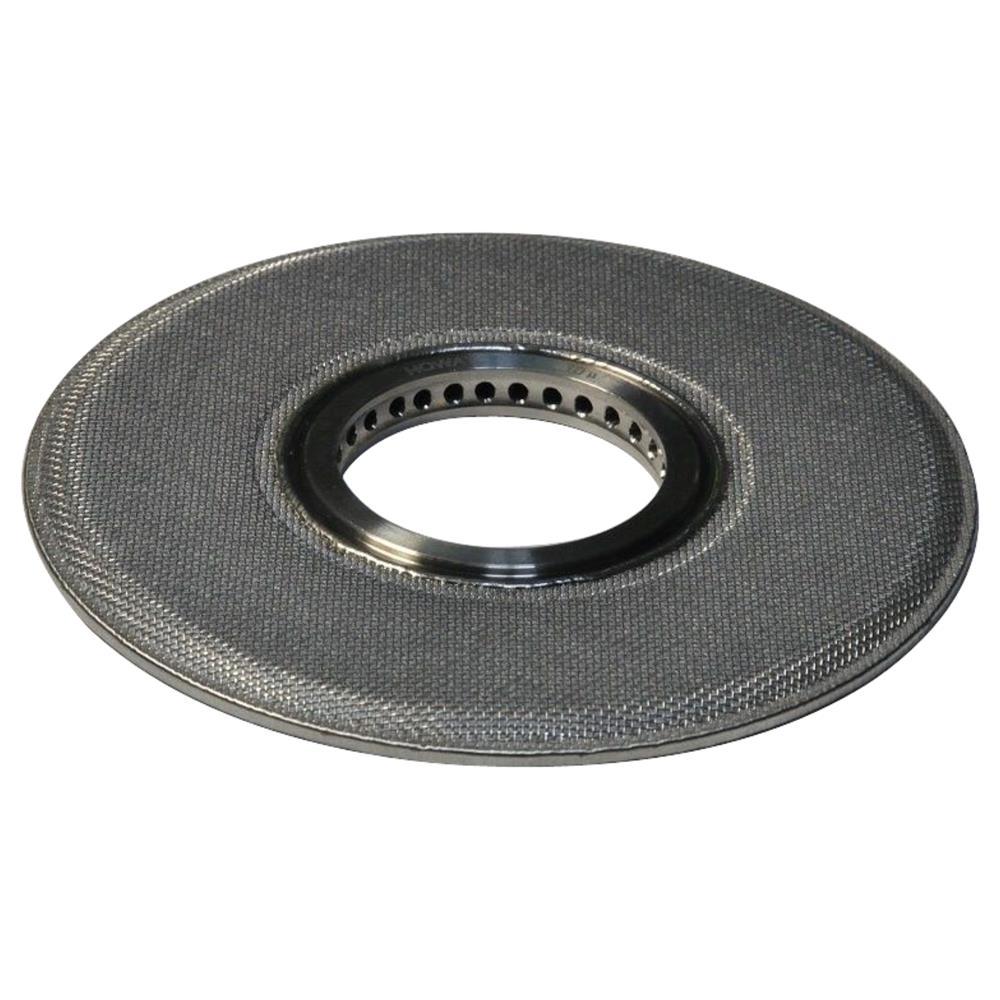

Sany polymer leaf disc filter introduction

The polymer leaf disc filters is made of sintered metal wire mesh laminates or sintered metal non-woven fiber felt medium.



Material & Micron rate & Construction

Standard material is stainless steel 316L, the other alloys can be required.

The micron rate is from 60microns up to 5microns absolute.

Standard hub are hard, soft, and semi-hard, our advanced construction/welding methods, result in excellent corrosion resistance.

Sany polymer leaf disc filter standard size

6inch

7inch

10inch

12inch

Pictures

OD(mm)

152.4

177.8

254

304.8



ID(mm)

38.2

85

85

85





63.5

47.6

63.5





47.6









38.2





Remarks: Such as the size of OD181mm, OD222mm, OD297mm can also be customized

Sany polymer leaf disc filter technical working data

Product name

Polymer Leaf disc filter

Working pressure

31.7MPa

Working temperature

300

Medium viscosity

260Pa.s

Defference pressure

10Mpa






Sany polymer leaf disc filter feature

High viscosity and large flow

Good cleaning performance

Long service life

Sany polymer leaf disc filter application

Mainly used for biaxially oriented film(BOPET,BOPP,BOPA,BOPI) and battery separate film production.
