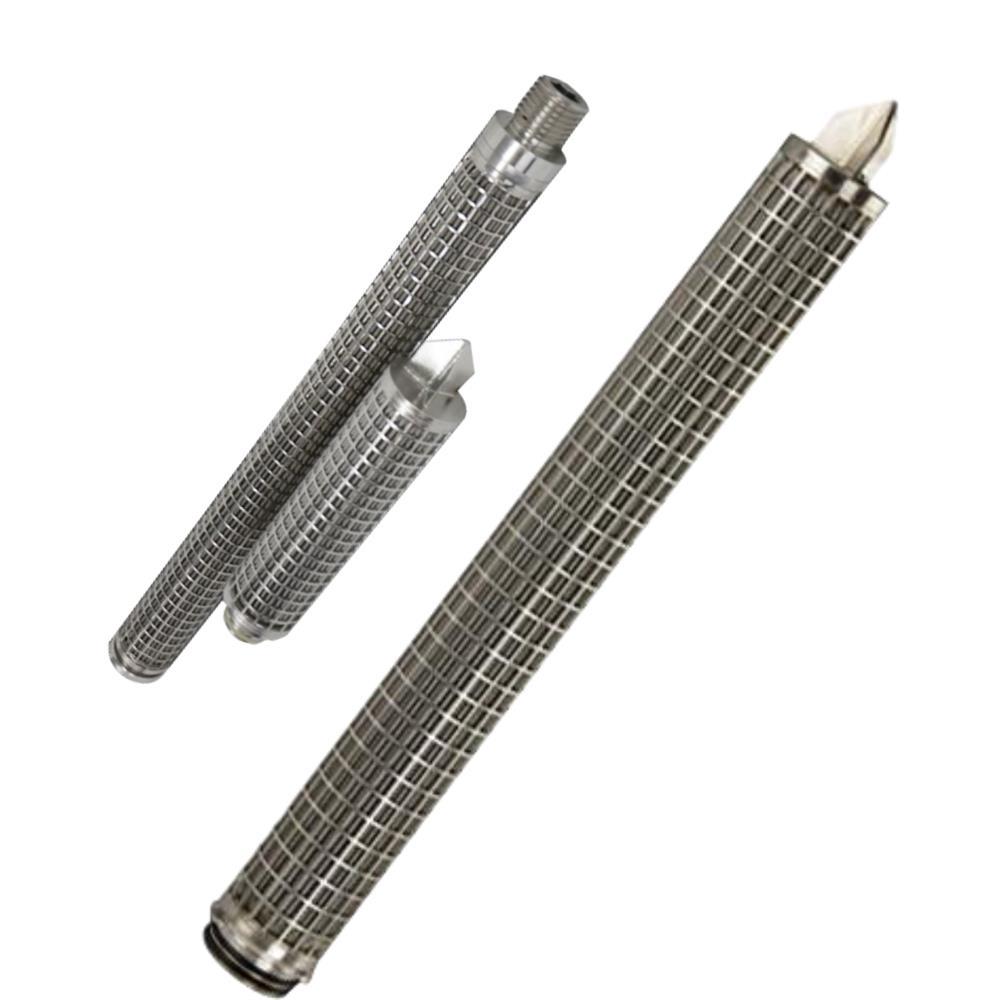

Stainless Steel Mesh Pleated Filter Cartridge

Stainless Steel Mesh Pleated Filter Cartridge

Stainless Steel Mesh Pleated Filter Cartridge
Stainless Steel Mesh Pleated Filter CartridgeStainless Steel Mesh Pleated Filter CartridgeStainless Steel Mesh Pleated Filter CartridgeStainless Steel Mesh Pleated Filter CartridgeStainless Steel Mesh Pleated Filter Cartridge
CategoriesStainless Steel Pleated Filter Candle
AlbumView larger image
BrandXinli
ModelChemical/Pleated Filter Cartridge
MaterialStainless Steel Woven Mesh
ApplicationChemical Filter
Mesh Hole Size1um-200um
FeatureLarge Filtration
AdvantageResistant to High Temperature & Corrosive
CertificationISO9001
SizeCustomizable
Brand NameSany
OEMYes
MOQ1 pcs
Unit PriceUS $ 190-200 / piece
FOB portQingdao,Tianjin or other Chinese Ports
Terms of PaymentL/C, Western Union, MoneyGram, T/T, Paypal
Update Time2019-03-22
Detail Information

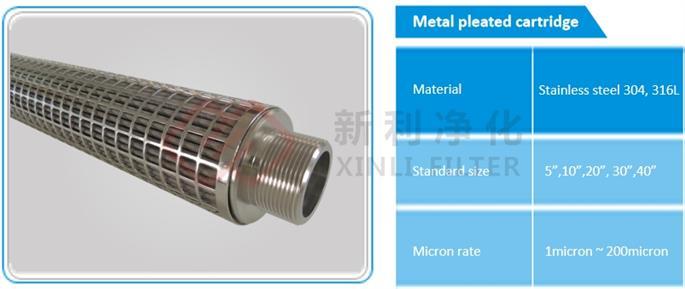

Sany Pleated Filter Cartridge introduction

Made of 3-layer or multi-layer woven wire mesh by pleated and then processed to be.It has the advantages that the good permeability, strong dirt holding capacity, large filtration area, long service life, resistant to high temperature & corrosion, washable and reusable etc. Widely used in petroleum, chemical and other industries filtration system.







Sany Pleated Filter Cartridge Technical Parameters

Name

 Sany Pleated Filter Cartridge

 Material

 SS304 or SS316L woven wire mesh

 Filter rating

 1-200um

 Size

 Customized

 Temperature

 300

 Working pressure

 30MPa

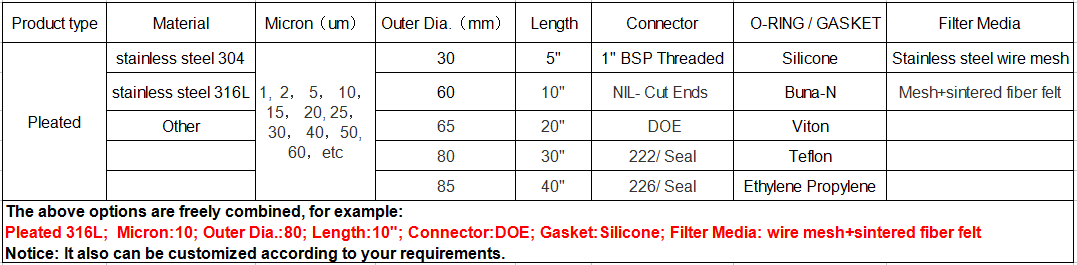

Sany Pleated Filter Cartridge Specification


Compared with Sany sintered wire mesh filter cartridge

1>Flow: Sany pleated filter cartridge is 5-10times as sintered filter cartridge

2>Working life: Sany pleated filter cartridge will be longer

3>Dirt holding capacitySany pleated filter cartridge is larger

4>Cleanable: Sany sintered filter cartridge is the better


Sany Pleated Filter Cartridge Mainly Connectors

1>Standard interface(such as 222,220,226)

2>fast interface connection,

3>threaded connection

4>flange connection

5>Bars

6>special customized interface connection.


Sany Pleated Filter Cartridge Application

Polyester, Water treatment, Pharmaceutical, Food and beverage, Petroleum, Chemical, Chemical fiber and High temperature air filtration,etc.
