There are two main filter material for this kind of filter element,stainless steel sintered fiber felt and stainless steel wire mesh.Stainless steel wire mesh is made of stainless steel wire by weaving, of which pleated filter cartridge are made has the advantages that smooth pore, easy to wash, resistant to high temperature & corrosion,firm structure, Long filtration cycle etc. Stainless steel sintered fiber felt is a filter material that made of stainless steel fiber by sintering in high temperature, of which the pleated filter cartridge are made has the advantages that high porosity, good air permeability, high dirt holding capacity, can be used repeatedly etc.

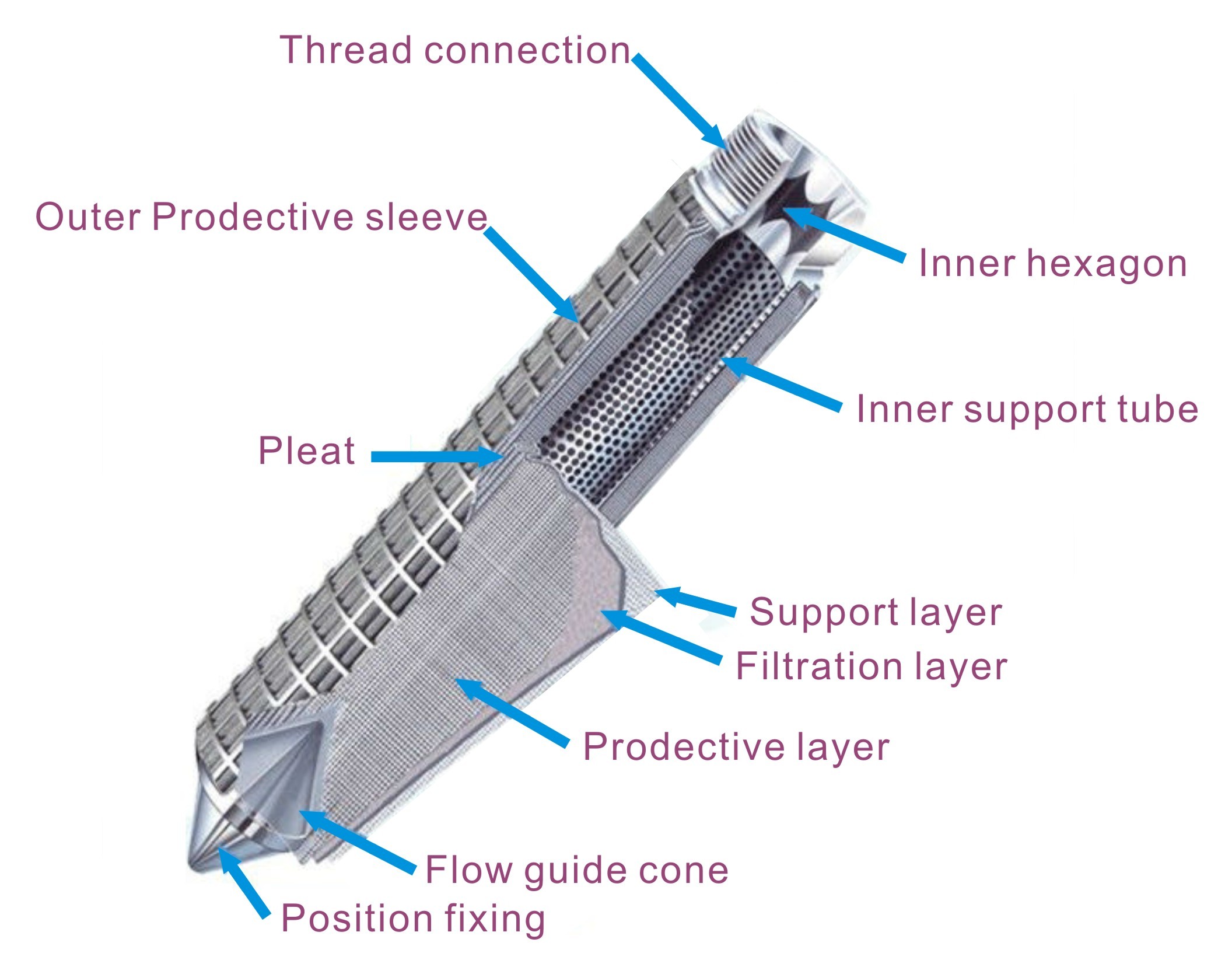

Sany fiber felt filter cartridge structure

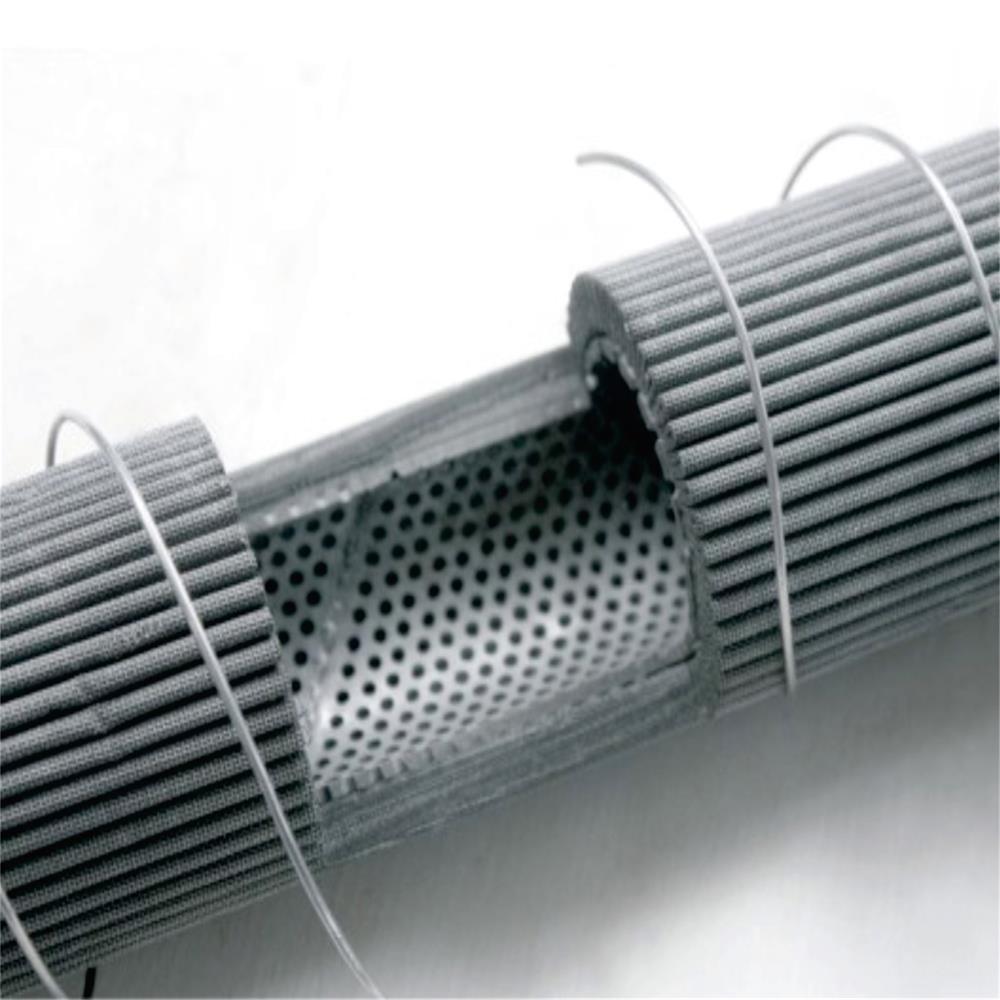

Standard structure is three layers, two layers of woven wire mesh,and one layer sintered non-woven fiber felt which is placed between two layers of woven wire mesh.or three layers woven wire mesh,and then pleated to be.Normally, there is a perforated tube as a inner support and another perforated tube or stainless steel wire as outer protective.

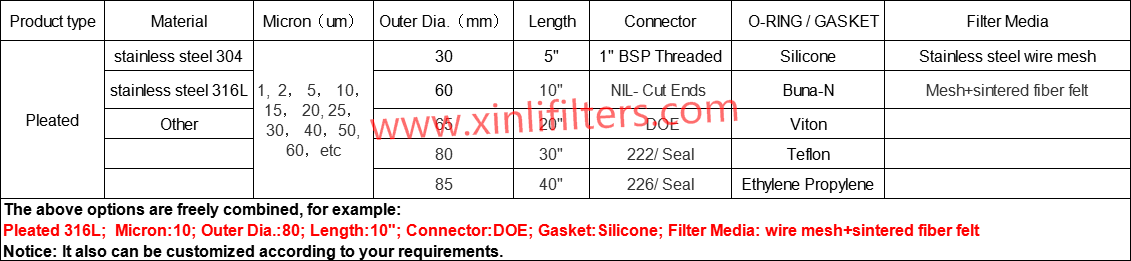

Sany fiber felt filter cartridge technical parameters
Sany Polymer Melt Pleated Filter Cartridge(Fiber Felt Type)
SS316L sintered fiber felt andSS304 or SS316L wire mesh
Dirt holding capacity
Standard interface(222,220,226),fast interface connection, threaded connection,special customized interface connection.
Sany fiber felt filter cartridge feature
Large filtration are (5-10times) as normal cartridge shape filter element, large filtration rate range(1-300um)
Sany polymer melt pleated filter cartridge main application
1.The filtration of polyester,filament,short silk and melt in film production;
2.The filtration of high temperature gas and steam;
3.The filtration of high temperature liquid and viscous liquid;
