Stainless Steel Powder Sintered Filter

Stainless Steel Powder Sintered Filter
Stainless Steel Powder Sintered FilterStainless Steel Powder Sintered FilterStainless Steel Powder Sintered FilterStainless Steel Powder Sintered FilterStainless Steel Powder Sintered Filter
CategoriesSintered Stainless Steel Powder
AlbumView larger image
BrandXinli
ModelStainless Steel Powder Filter
MaterialStainless Steel Powder
ApplicationIndustrial Filtration
FeatureHigh Filtration Precision
CertificationISO9001
TechniqueSinter
ColourSilver
ShapeCartridge/Disc or On Request
Standard Thickness2.5-3mm
OEM ServiceAccepted
Brand NameSany
Unit PriceUS $ 192-200 / piece
FOB portQingdao,Shanghai,Ningbo or other Chinese ports
Terms of PaymentL/C, Western Union, MoneyGram, T/T, Paypal
Update Time2018-11-18
Detail Information

Sany Sintered Stainless Steel Powder Filter introduction

The metal microporous filtration material is made of irregular stainless steel powder processing ,formed by isostatic pressing, molding, extrusion molding. It has good permeability filtration performance and high filtration precision, and a certain strength and toughness, can be used under the high temperature of 300 ℃.




 Sany sintered stainless steel powder filter technical parameters

 Name

 Sany Sintered Stainless Steel Powder Filter

 Material

 304 or 316L Stainless steel powder.

 Micron Rate

 From 0.2um to 65um, optional.

 Max aperture

 2.5-160um

 Air permeability

 1-1000

 Diameter

   0.8'' 1.2''  1.4''  1.6''  2''  2.4''  (1''=25mm)

 Max length

 40''  (1''=25mm)

 Wall thickness

 3.0mm

 Shape

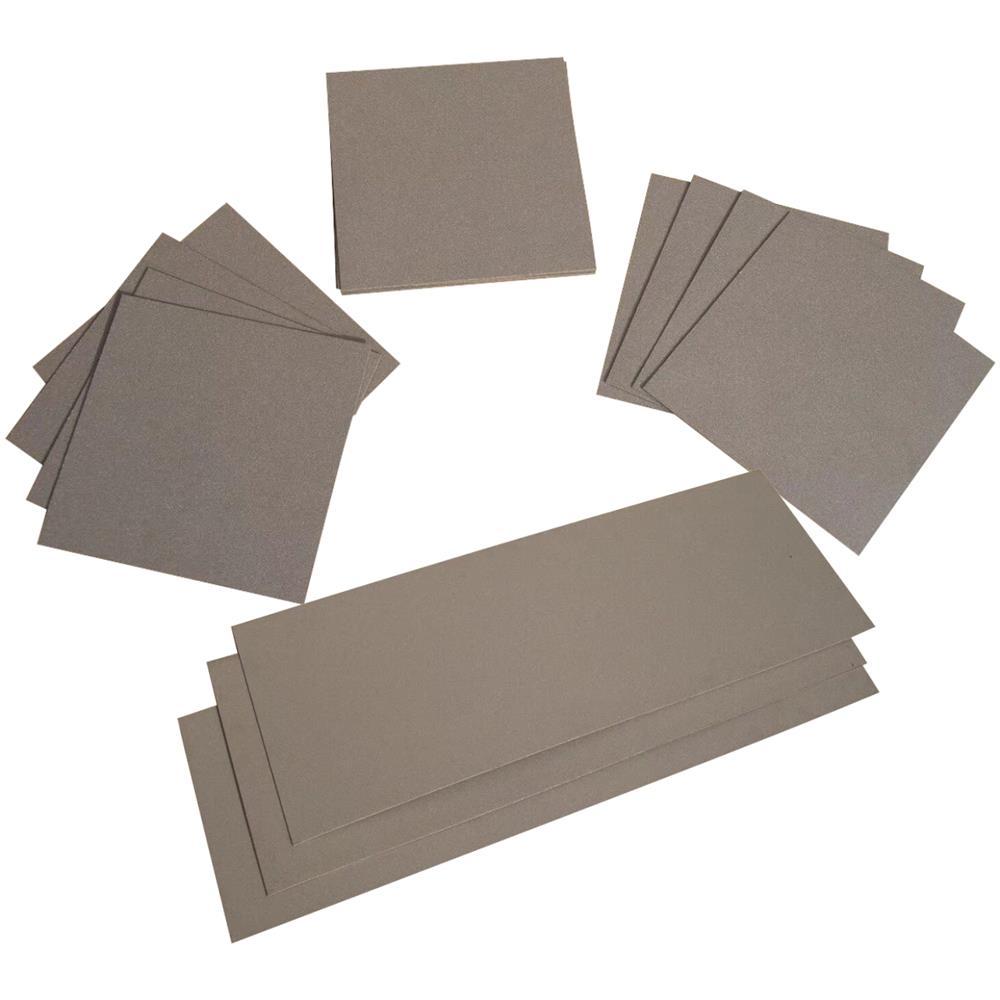

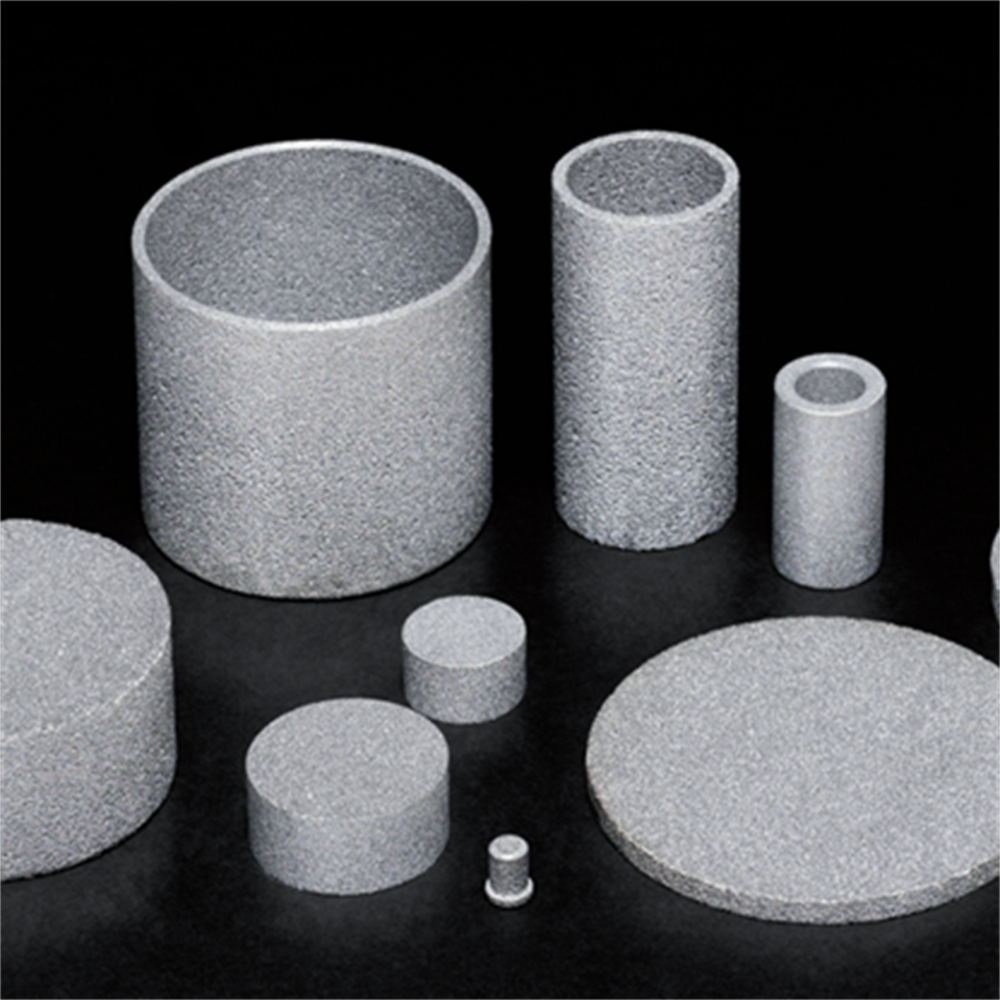

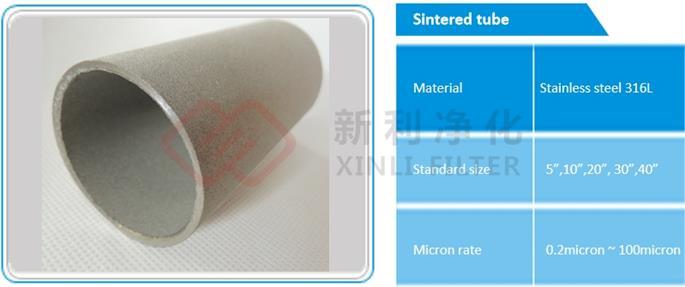

 Tubular, Plate, Sheet, Rod, Disc, Ring, Cone etc.

 Max temperature

 600

 Max pressure

 3Mpa

 Working condition

 Acid, Hydrogen, Vapour, Hydrogen sulphide, Gas


Sany sintered stainless steel powder filter application

It is mainly applied in the basic industries such as petroleum, chemical industry, environmental protection, as the filter material, porous electrode materials, sound-absorbing materials, damping materials, divergent cooling material, catalyst and catalytic materials, antifreeze and cushioning material.
