Stainless Steel Composite Mesh Tube For Protecting Valves Filter

Stainless Steel Composite Mesh Tube For Protecting Valves Filter

Stainless Steel Composite Mesh Tube For Protecting Valves Filter
Stainless Steel Composite Mesh Tube For Protecting Valves FilterStainless Steel Composite Mesh Tube For Protecting Valves FilterStainless Steel Composite Mesh Tube For Protecting Valves FilterStainless Steel Composite Mesh Tube For Protecting Valves FilterStainless Steel Composite Mesh Tube For Protecting Valves Filter
CategoriesMetal Mesh
AlbumView larger image
BrandXinli
ModelSintered wire mesh
Product nameStainless Steel Composite Mesh Tube For Protecting
CertificateISO9001
ColorSilver
Mesh count1-635 Mesh
FeatureCorrosion Resistance
ApplicationIndustry Filter
Filter rating1-300um
SampleAccording to size
OEM serviceAccept
PH1-14
Unit PriceUS $ 55-60 / piece
FOB portTianjin,Shanghai,Qingdao
Terms of PaymentL/C, Western Union, MoneyGram, T/T, Paypal
Update Time2018-12-16
Detail Information

Stainless Steel Composite Mesh Tube For Protecting Valves Filter product introduction:

The compressor had reliability issues with the valves failing within months. The objective for the valve change is to improving compressor efficiency. The picture shows the cages for the suction and discharge valves, with new Valve Protection Mesh used in the suction valve cage.

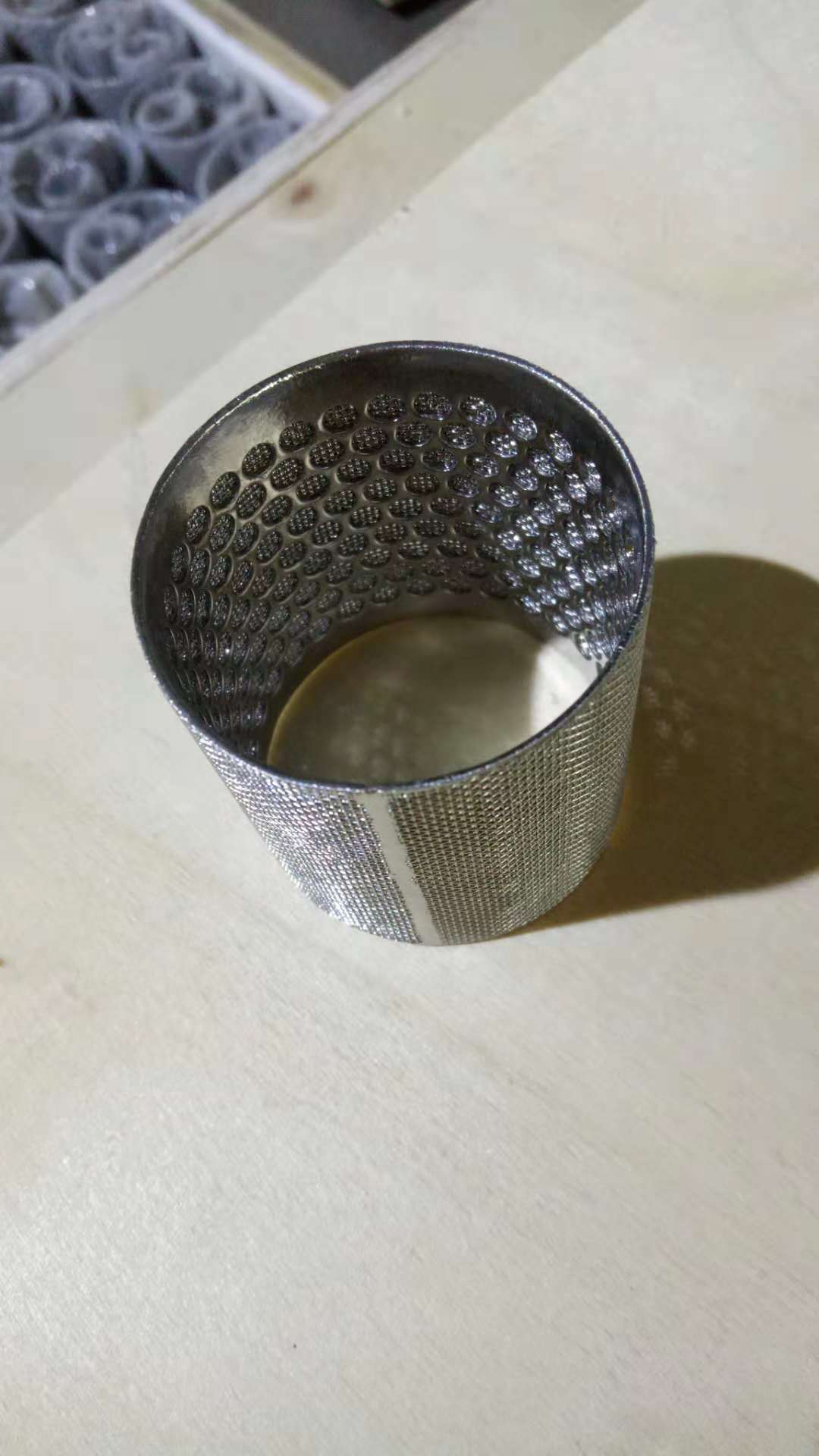

Stainless Steel Composite Mesh Tube For Protecting Valves Filter Product Image:



Stainless Steel Composite Mesh Tube For Protecting Valves Filter Product Characters:

Advantages:Applications:
1. Corrosion resistance, heat resistance
2. High porosity and excellent permeability, low pressure drop and high flow rate
3. Can be welded and machined
4. Washable, reusable
5. Special size and shape can be made according to customer's request.
6. Shape\size etc, all specifications can be customized.
1.Water treatment.
2.Oil filtration
3.Pharmaceutical
4.Chemical
5.Chemical fiber
6.High temperaturemedia filtration.

Why Choose Sintered Wire Mesh:

1.High strength and rigidity :

extreme mechanical strength and pressuretolerance, can be machined, welded and assembled,

2.Uniform and stable precision:

consistent filter property in various media,without apertures changing during operation.

3.Widely service environment:

can be continuously in temperature rangingfrom-200 to 600 and filtering in acid and alkali conditions.

4.Cleanable:

backwash easily, and reused with longerservice span, and can be cleaned by means of ways, such as backstream,filtration liquid, ultrasonic, dissolution and baking.
