Biaxially Oriented Film Stainless Steel Fiber Felt Leaf Disc Filter

Biaxially Oriented Film Stainless Steel Fiber Felt Leaf Disc Filter

Biaxially Oriented Film Stainless Steel Fiber Felt Leaf Disc Filter
Biaxially Oriented Film Stainless Steel Fiber Felt Leaf Disc FilterBiaxially Oriented Film Stainless Steel Fiber Felt Leaf Disc FilterBiaxially Oriented Film Stainless Steel Fiber Felt Leaf Disc FilterBiaxially Oriented Film Stainless Steel Fiber Felt Leaf Disc FilterBiaxially Oriented Film Stainless Steel Fiber Felt Leaf Disc Filter
CategoriesStainless Steel Fiber Felt Leaf Disc Filter
AlbumView larger image
BrandXinli
ModelLeaf Disc Filter
MaterialSintered stainless steel fiber felt
CertificationISO9001
SizeStandard
Micron5-100um
ApplicationBiaxially Oriented Film
ShapeRound
Reinforcing ribRequirements
Brand nameSany
OEM serviceAccepted
Product nameBiaxially Oriented Film Stainless Steel Fiber Felt
Unit PriceUS $ 360-380 / piece
FOB portQingdao, Tianjin, Shanghai
Terms of PaymentL/C, Western Union, T/T
Update Time2018-12-16
Detail Information

Sany leaf disc filter introduction

The characstics of the filter disc is best in filtering the fine articles, with good use strength and stable filtering rating. Sany filter company can make the filter, which filtration rating is from 5micron to 100microns and the diameter can be customized according to requirements.

 Product Name: Leaf Disc Filter


 Material: 304 or 316L stainless steel

 Micron Rating: 5100µm

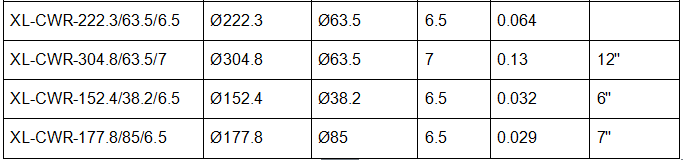

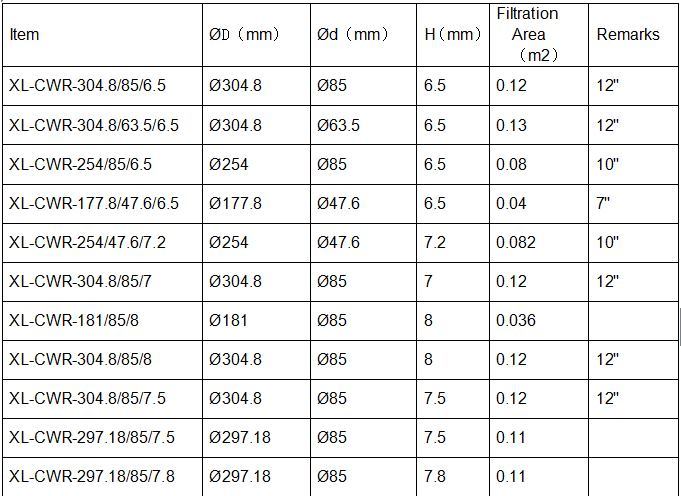

 Outside Diameter: 152.4mm-304.8mm

 Inner Diameter: 38.2-85mm

 Thickness: 5.5–10.5mm

 Porosity:about 80%

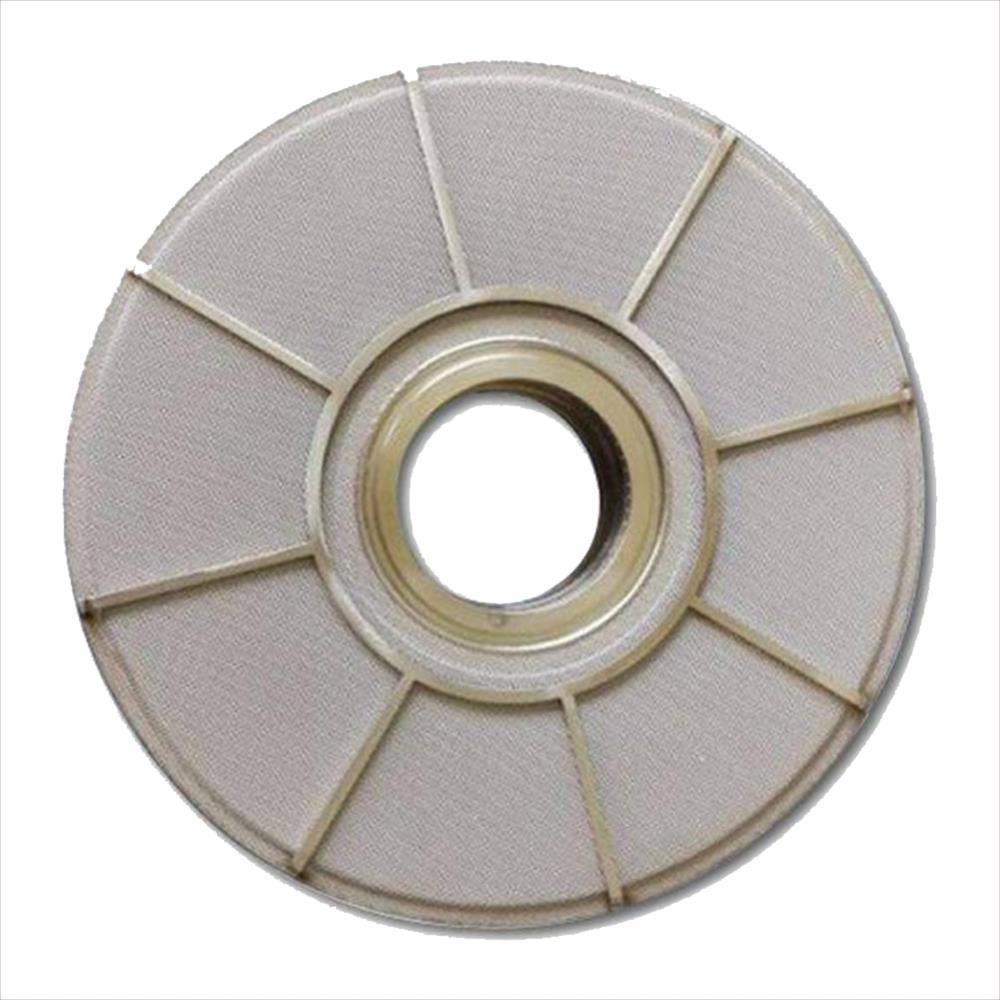

 Leaf disc filter is processed by sintered non-woven fiber felt media, which is good for high-molecular polymer filtration.


Sany leaf disc filter technical parameters

Product name

Leaf disc filter

Working pressure

31.7MPa

Working temperature

300

Medium viscosity

260Pa.s

Defference pressure

10Mpa

Product type

Center ring welding type or Package edge

Center ring welding type with reinforcing rib





Sany leaf disc filter feature

Good strength, high filtration rating, high porocity, high temperature resistance, good pollutant carry capacity etc.

Sany leaf disc filter application

Biaxially oriented film(BOPET,BOPP,BOPA,BOPI) and battery separate film, Polyester melt, Spinning, Packaging materials, Engineering plastics, Petroleum, Chemical and so on.
