Stainless Steel Mesh Pharmaceutical Filter Disc

Stainless Steel Mesh Pharmaceutical Filter Disc

Stainless Steel Mesh Pharmaceutical Filter Disc
Stainless Steel Mesh Pharmaceutical Filter DiscStainless Steel Mesh Pharmaceutical Filter DiscStainless Steel Mesh Pharmaceutical Filter DiscStainless Steel Mesh Pharmaceutical Filter DiscStainless Steel Mesh Pharmaceutical Filter Disc
CategoriesPharmaceutical Filter Disc
AlbumView larger image
BrandXinli
ModelPharmaceutical filter disc
MaterialStainless Steel Woven Mesh
ApplicationPharmaceutical industrial
FeatureHigh Strength
CertificationISO9001
TechniqueSinter
ColourSliver
ShapeDisc
Thickness3.5mm
OEM ServiceAccepted
Brand NameSany
Unit PriceUS $ 585-600 / piece
FOB portQingdao,Shanghai or other Chinese ports
Terms of PaymentL/C, Western Union, MoneyGram, T/T, Paypal
Update Time2019-05-26
Detail Information

Sany Pharmaceutical Filter Disc introduction:

Sany pharmaceutical filter disc is an ideal filter element for filtering & cleaning & drying(simply for three in one).Its main filter material is made of multi-layer stainless steel sintered wire mesh welded with flange to round disc shape or cone shape.It is mainly used in the three in one or two in one equipment for pharmaceutical,chemical,food industry etc. Compared with traditional filter cloth,it has the advantages that good rigidity,high strength,long working life,easy to clean,easy for installation etc.Filter rating will be 1~300um,diameter is 100~3000mm.



Sany Pharmaceutical Filter Disc structure:

The structure of Sany pharmaceutical filter disc is divided into integral type and fission type.

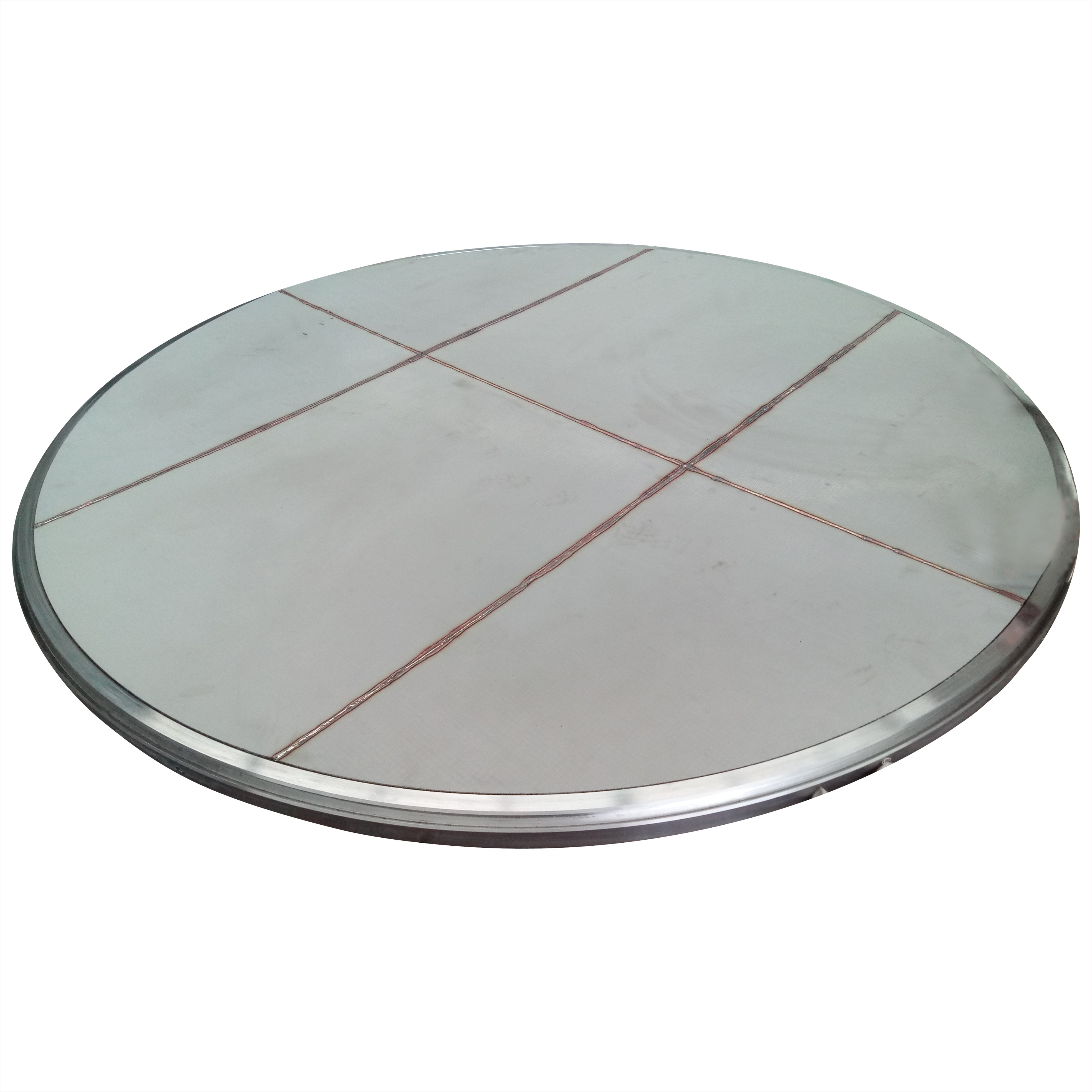

Sany integral type:

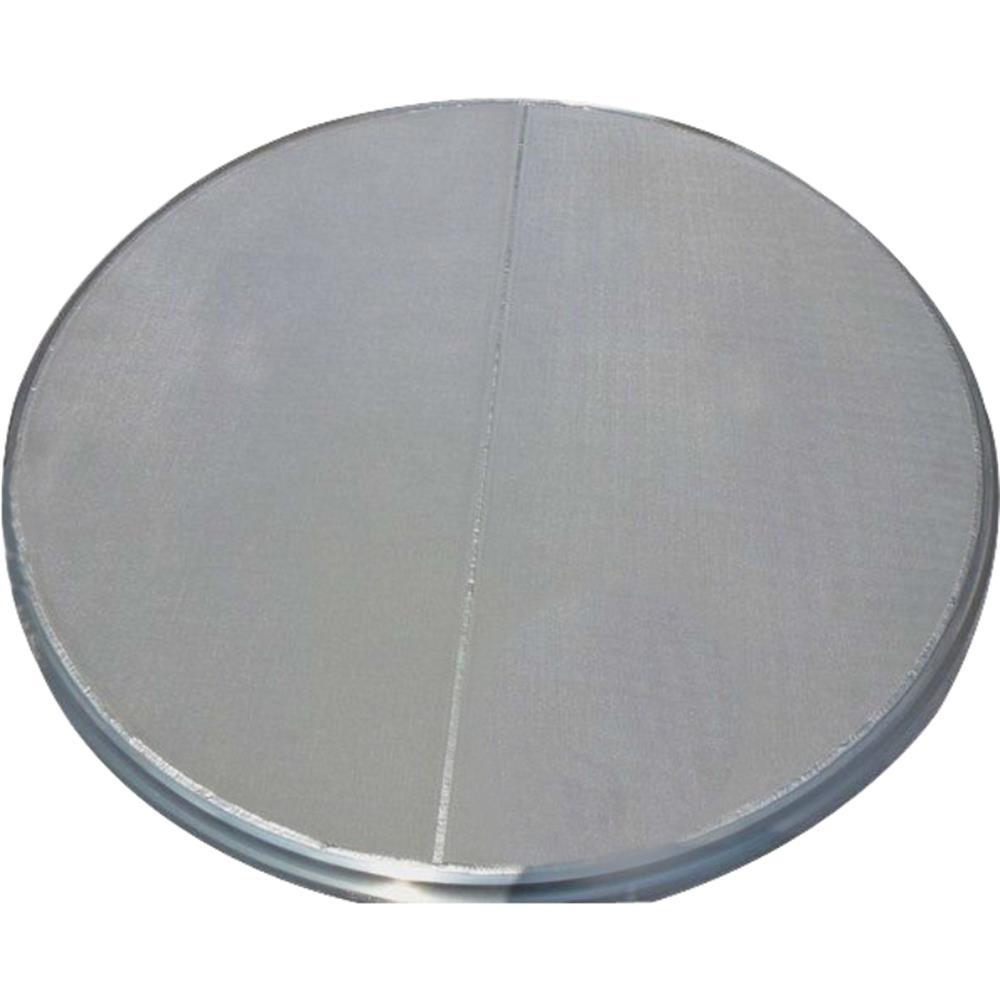

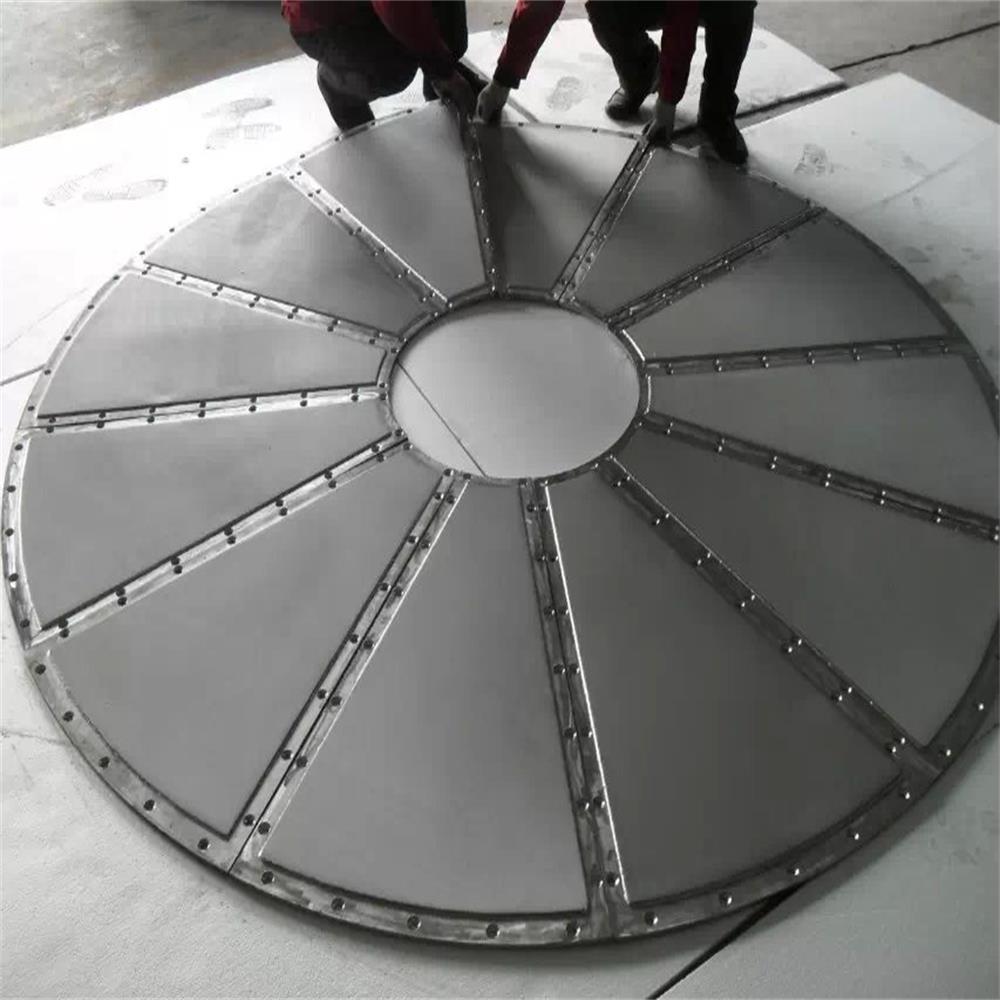

Sany fission type:


Sany integral type compare with fission type:

1. The price of integral type is higher

2. Replacement cost of fission type is lower

3. When the entrance space is small, you can only choose the fission type

Sany Pharmaceutical Filter Disc Technical Parameters:

 Name

 Sany Pharmaceutical Filter Disc

 Material

 304 or 316L stainless steel wire mesh

 Filter rating

 1-300um

 Size and Shape

 According to the requirements

 Standard thickness

 1.7mm, 2.5mm, 3.5mm, 6mm, 8mm

 Temperature

 600℃

 Connectors

 Flange


Sany Pharmaceutical Filter Disc Feature:

Good rigidity,excellent filter rating,can be cleaned repeatedly, reusable.

Sany Pharmaceutical Filter Disc Application

Widely used in pharmaceutical,chemical,food industry etc.
